11 axis camless CNC spring making machine double torsion 0.2--2.5 mm

FOB Reference Price:Get Latest Price
$29,400.00 - $33,600.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GJ-23X
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 21 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Place of Origin:
Guangdong, China
Brand Name:
Guang Jin CNC
After-sales Service Provided:
Field installation, commissioning and training, Video technical support, Online support
Condition:
New
Wire size:
0.2--2.5mm (diameter)
Axis:
11 servo motors
Power / Input:
380v, AC, 3 phase, 50Hz,
Total Servo Power:
12.7 KW
Can produce:
compression, extension, torsion, flat spring, wire forming,
Advantage-1:
Fast setup and debug,
Advantage-3:
make conveyor belt
Motor:
Sanyo denki
Usage:
all kinds springs
Supply Ability
Supply Ability:
6 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Film wrapped, belt and buckle tightened, wood box / stand.
2. Total: 2 cartons, 3.40 CBM, 980kgs.
Port
shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 21 To be negotiated
Video Description
Product Description


11 axis cam less CNC spring making and wire conveyor belt bending machine for wire thick 0.2--2.5mm


Model:  GJ-23X
Cam less,   11 axis,    0.20-2.5 mm feeding wire.


Technical Parameters
Model
GJ-23X
Wrie size
Φ0.2~2.5mm
Axes count
Total  11
a.   8 x Handle,
b.  1x Wire Feeding,
c. 1x Quill,
d.  1x spin function
Outside miameter
max Φ 50mm
Wire Feeding
0.01mm  /  1000.00
Wire feed speed
0~100 m/min
Cam setting value
±0.1° ~ ±359.9°
Cam rotation speed
0~100 rpm
Total Servo Power
12.7 KW
Power / Input
AC,  380±10%V,  50Hz

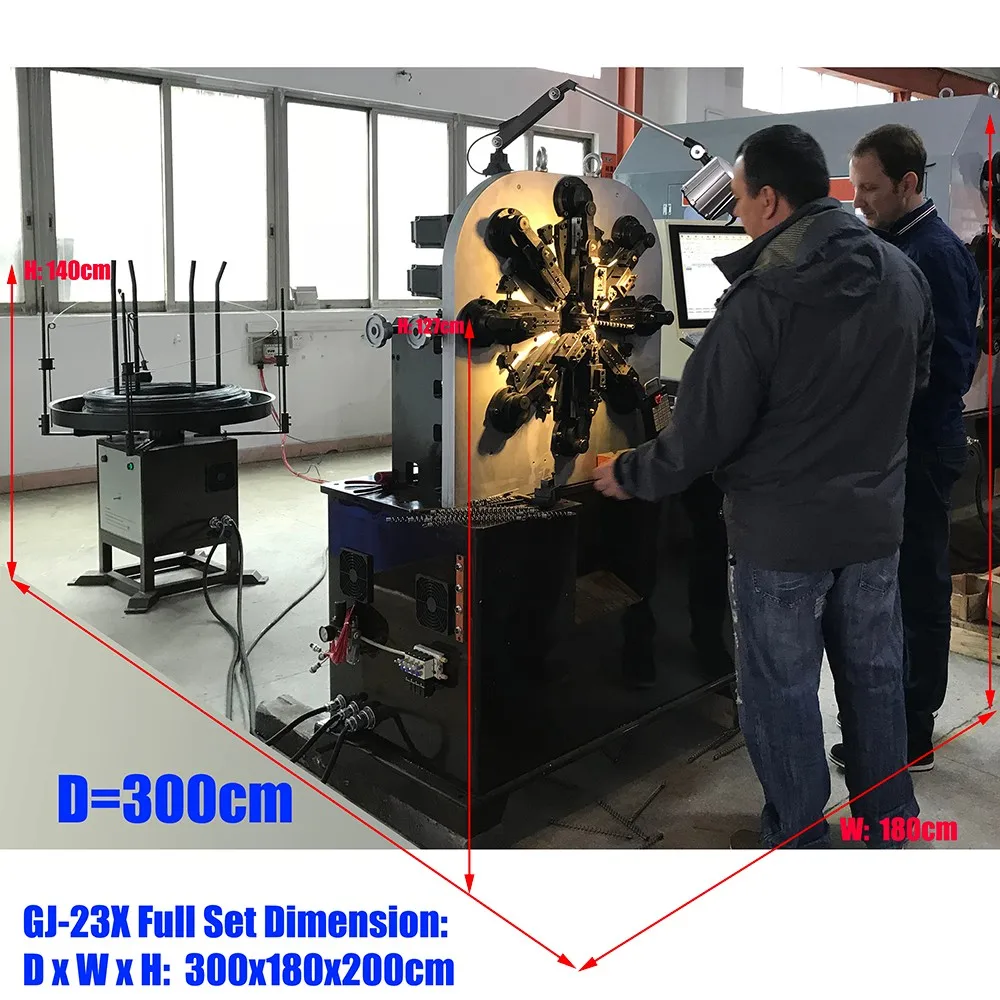

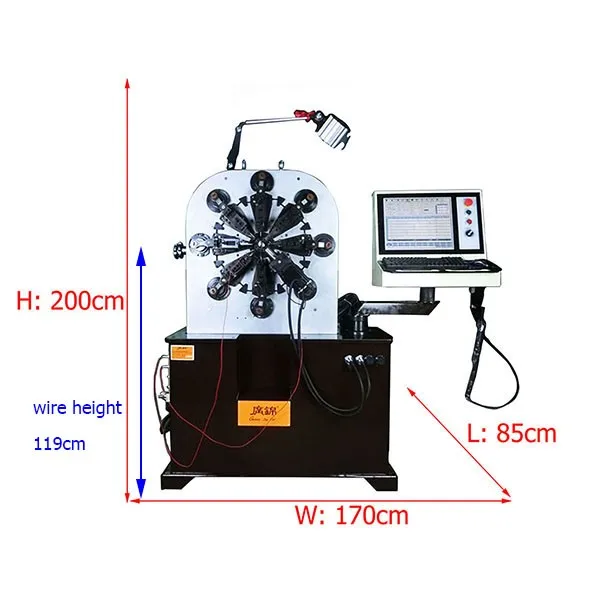

Machine Size
Full Set Dimension: 150x220xH200 cm
Machine Weight
Main machine: 850kgs
Feeding wire and accessaires:  150kgs


GJ-23X Wire Feeding Advantages:

1. Tightness adjust as vary of wire thickness
2. Mechanism for Feed Rollers to accurate position as desired.
3. Four vertical feed wheel shafts installed with great patience
  for seek best balance of feed rollers good movement when adjust and minimize vibrate in wire feeding mechanism.
4. 0.001mm magnetic vibration testing table used in Step 3 many times.

All them above lead to our 0.15mm feeding wire in precisionand excellent performance in mass producing.

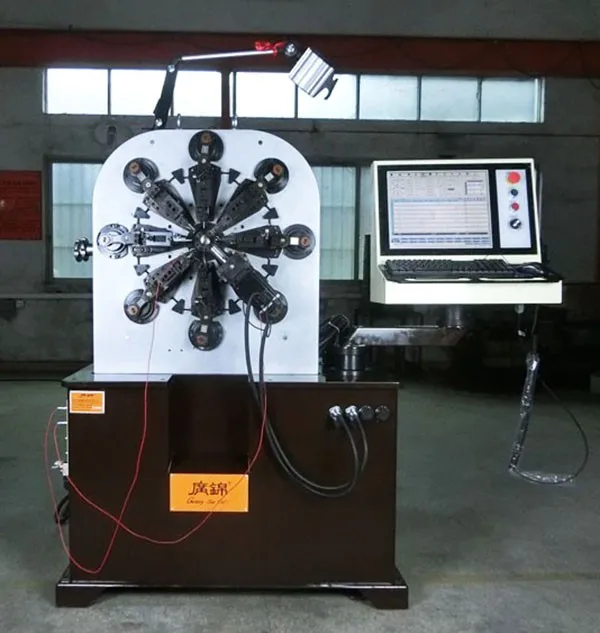

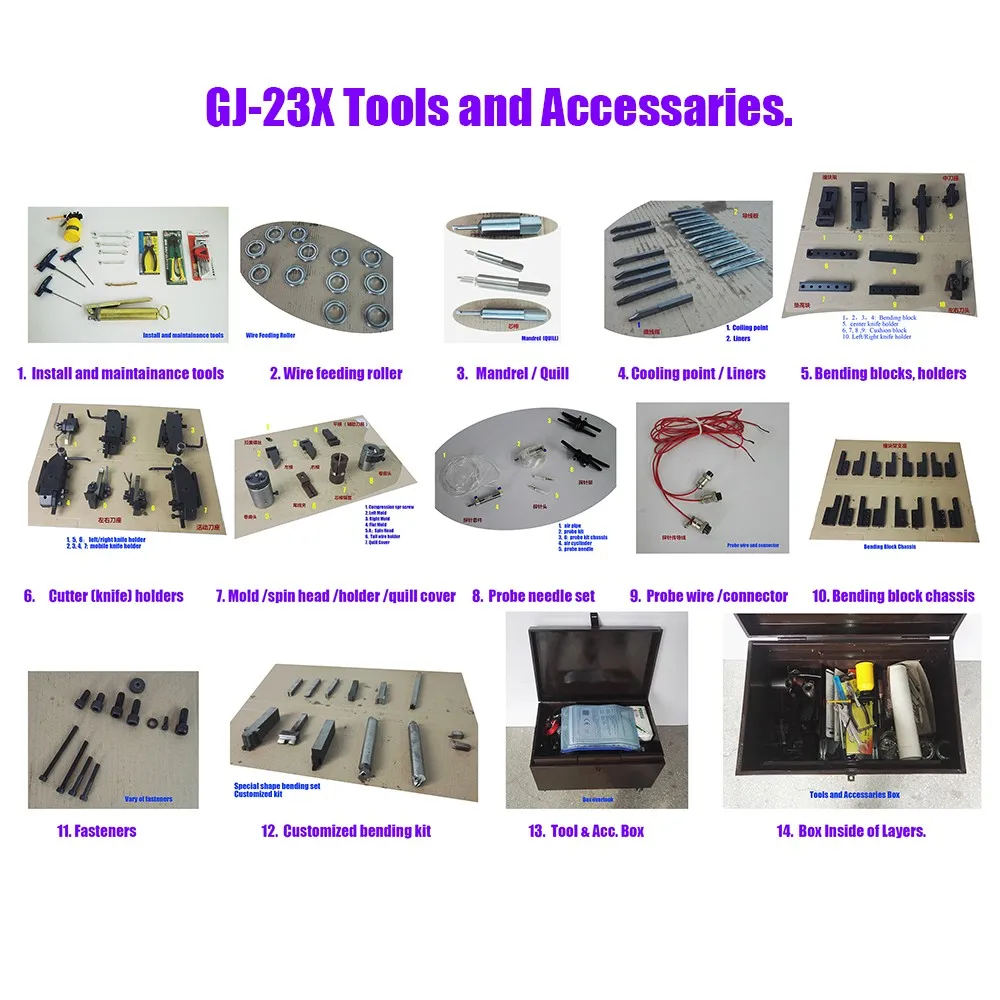

Detailed Images

Name: GJ-23X CNC spring forming machiner

Brand: GuangJin

Original: DongGuan

Servo motor brand: SANYO

Control System: By the research and development of Taiwan

It made Samples
Our Service
Our Quality, Guarantee, and Service Policy

Part --1:  Quality and Guarantee

1.  Key Parts of top brands: Sanyo Denki Servo,  SKF Bearing in wire feeding, Panasonic Frequency Converter

2. Every set machine go for a 72 hours running-in / warm-up before sampling / shipping.

3. Field inspection during training and as per Specification listed in PI / Sales Contract.

4. Guarantee: 18 Month ( Since Shipping day ), and Servo Motor for 30 Months


Part--2:  Service consist of A+B as following:

A. Provide 7--10 days our factory workshop free training as contents below:

1. How to make Wire Decoiler installed and power /signal cables connected.

2. How to make Wire feeding-In

3. Machine setup and adjusting, machine using, vary sized tools changing,

4. Sampling / sampling making.

5. Guideline and discipline for check and settle errors

6. How to identify the signal lighting of servo motor, power source and screen.

7. How to make the machine Lubricated periodically

8. Guideline and principles for the safety and maintenance

9. Tips, Programing, Speed, Program Optimize,

10. Or, Draft a training list as buyer's desire or style, then go for it.


B. After sales service as below:

1. Most minor errors and misuse can be avoided or settled by user's technician as over above training.

2. Big problem can be removed by video calling, tell within 2-5 times within 2 days.

3. Major problem or error can be settled by seller's Local Sources / Agent,

and repair or service cost payer to be specified in the check / service /repair report.

4. Critical problem or error can be settled by our direct service ( fly to ),

and cost and payer of repairing or service will be discussed and wrote in them report.
