2.5 mm 3 Axis 8 Cam Automatic Spring Machine for constant force

FOB Reference Price:Get Latest Price
$17,750.00 - $19,880.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GJ-23G 3axis
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 21 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Place of Origin:
Guangdong, China
Brand Name:
Guang Jin CNC
After-sales Service Provided:
Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Warranty:
2 Years
Wire Diameter:
0.2mm~2.5mm
Servo Motor:
3 Axis
Producible Spring O.D.:
50mm ( Max )
Max Feeding Speed:
90m/min
Wire Feeding Servo Motor:
2.7kw
Cam Servo Motor:
2.7kw
Quill Servo Motor:
1kw
Accuracy:
0.15mm
Producing:
flat spring, constant force, flute spring
Supply Ability
Supply Ability:
8 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Packed as 2 wooden cartons, one for main machine, one for wire decoiler and accessaries.
2. Total: 2Cartons/960kgs/2.86CBM.
3. Plastice file wrapped, strapping belt / buckle tightened, wood carton.
Port
Shenzhen Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 21 To be negotiated
Video Description

0.2-2.5 mm 3 Axis 8 Cam CNC Automatic spring machine wire bending machine



Model: GJ-23G ( 3Axis )

Producible:   vary types of springs, clip, constant force, flat springs,  etc.



Product Description



























Features



This computerized spring machine can produce all kinds of difficult springs
Including all kinds of special-shaped spring, double torsion spring, auto parts, automobile spring, furniture hardware, kitchen hardware, supermarket pendant, entertainment fitness equipment, flat spring (clockwork spring) and a variety of wire forming etc..
Control independently by multiple groups of servo motors.



Technical Parameters



Product name

8 CAM Multi Purpose mini to smal spring  coiling machine

Model

GJ-23G

Wire Diameter

Φ0.2mm~Φ2.5mm

Number of Axes

3 ( Standard )

Spring O.D.

Max Φ50mm

Wire Feeding (unit )

0.01mm /  1000.0 mm

Cam Setting Value

±0.1° ~ ±359.9°

Wire Feed Speed

0~90 m/min

Cam Rotation Speed

0~100 Rpm

Wire Feed Motor

2.7kw

Cam Servo Motor

2.7kw

Zaixs Servo Motor

1kw

Power / Input

 3phase, 380v±10%,  Ac,  50Hz

Size and Package



1.  Machine size: 101x60x158 (H) cm

2.  Film wrapped, belt tightened, wood box / stand.

3.  Container Load: 4Set/1x20 Feet Container



Machine Weight

 850kg (mainbody),

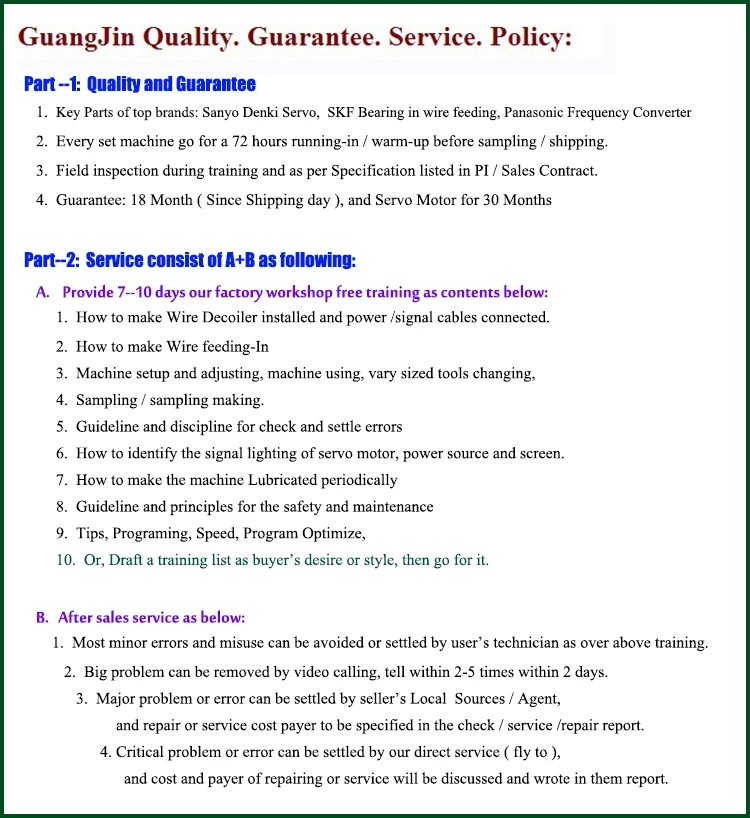

Service & Advantage

Packaging & Shipping









Company Information

























Exports and business activities:



2019-06 Guangzhou spring industry exhibition.









Contact person:





Dongguan GuangJin CNC Equipment Co., Ltd.
Baker Liu -- Export Manager
Wechat / Whatsapp :  +86 13433629565
